Universal Fridge Freezer Bullet Piercing Valve Kit replaces Supco - 1 / 4" to 3 / 8"
Universal Fridge Freezer Bullet Piercing Valve Kit replaces Supco - 1 / 4" to 3 / 8"
Low stock
Couldn't load pickup availability
- Spare Part Enquiry
- Do you need help finding the correct part for your appliance?
- We can help find the part you need, simply submit aĀ part finderĀ request and we'll get back to you asap.

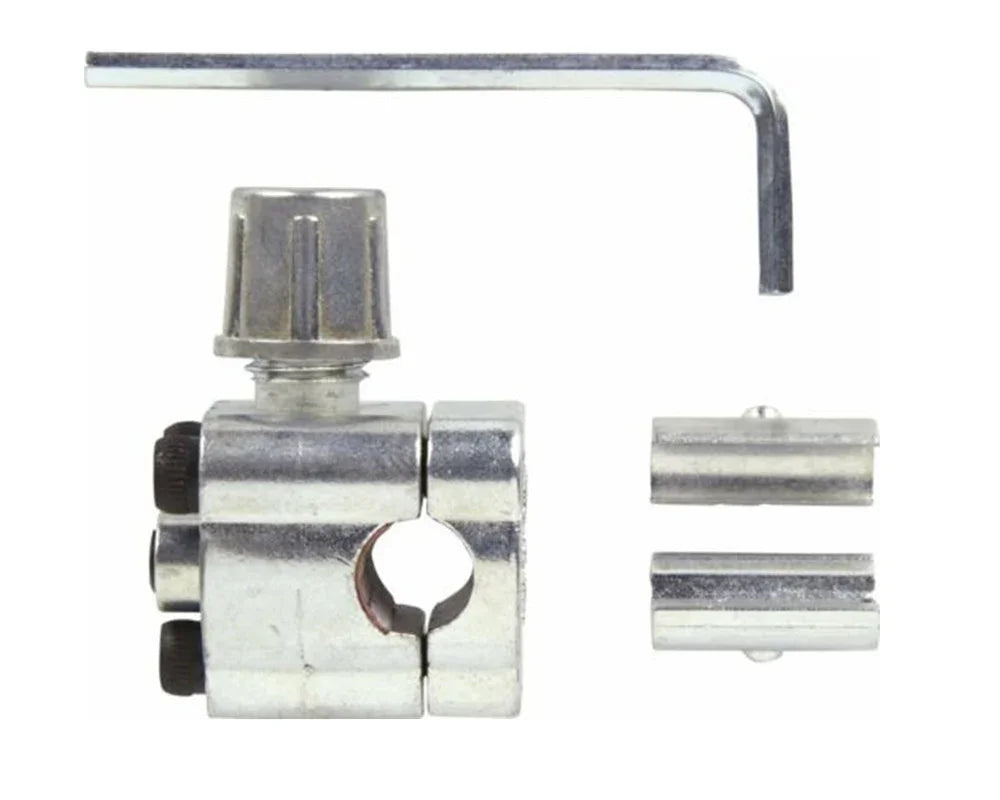

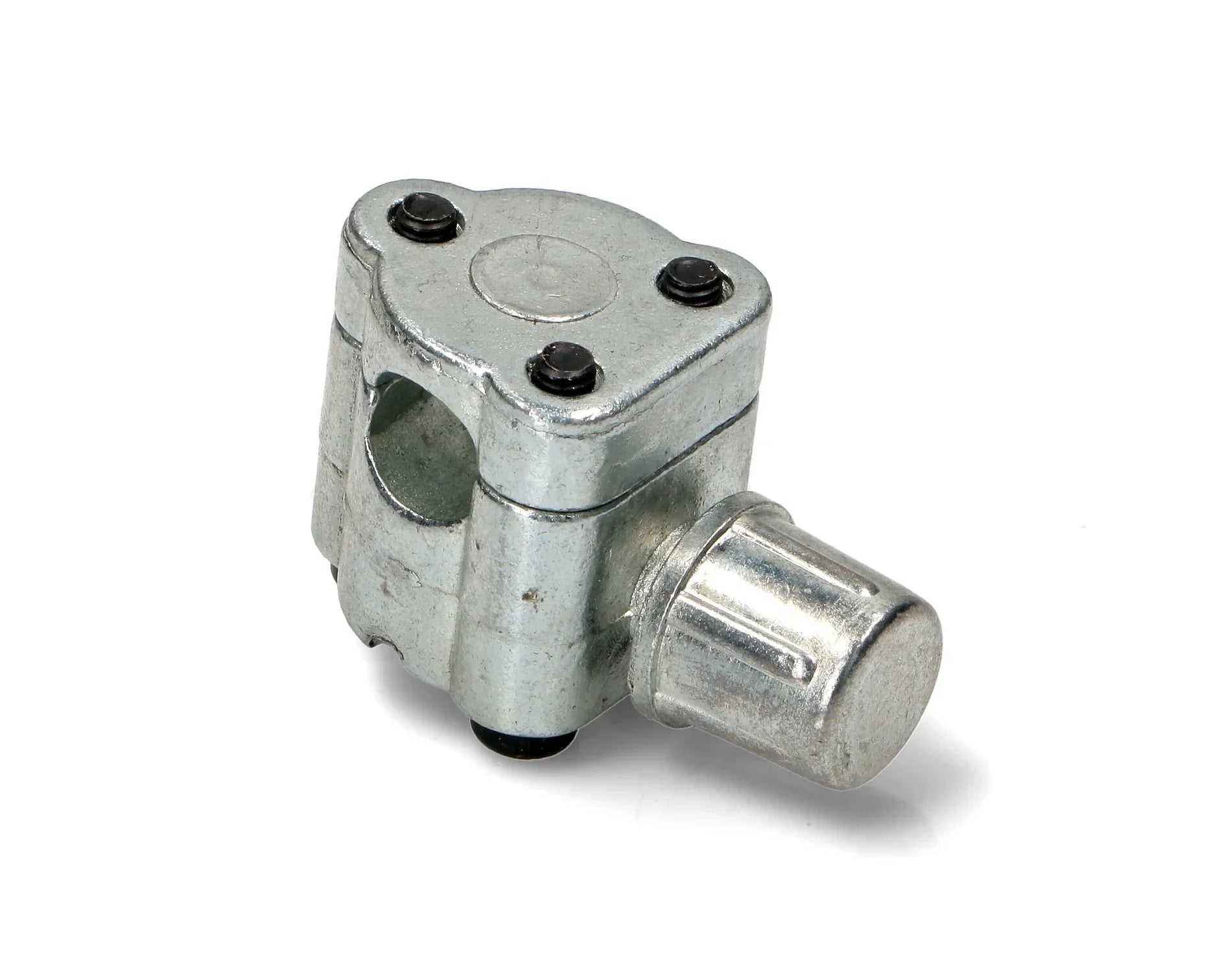

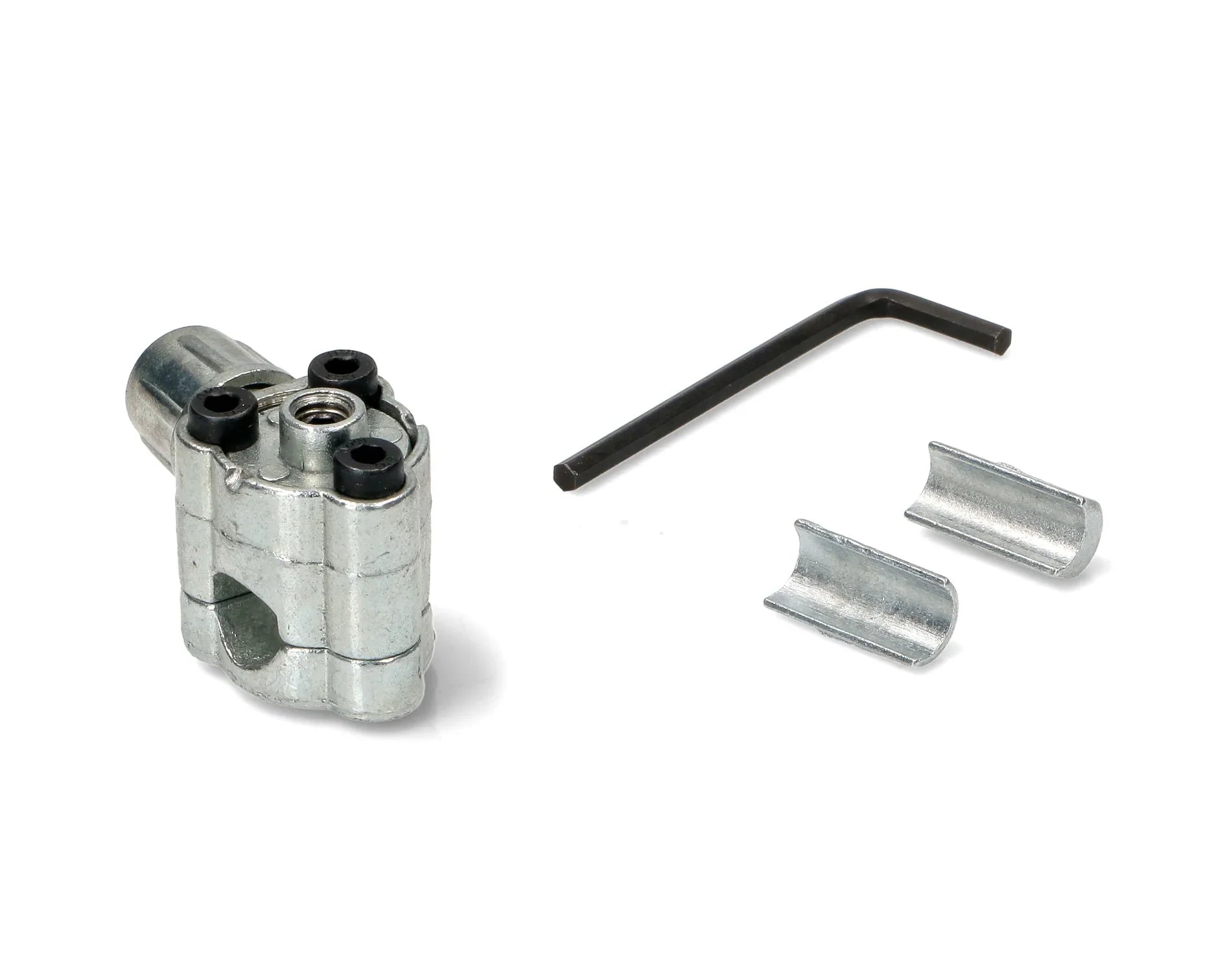

Universal Fridge Freezer Bullet Piercing Valve Kit - 1 / 4" to 3 / 8"
BULLET PIERCING VALVE KIT
PLEASE NOTE: Item may at any time cosmetically change appearance without notice, however the item will be 100% suitable
Complete kit for tubing from 1/4" To 3/8" (1/4", 5/16", 3/8")
BulletĀ® Piercing Valveāutilizes the same type of gasket found under the head plate of most air conditioning compressors. When installed the gasket actually compresses the copper tubing .020ā
Patented valve gasket application provides 50 times more sealing area than competitive āOā ring types
A sealing force of over 180 inch lbs. torque tested with 500 lbs. pressure tested at 250Ā°F
Precision piercing needle is engineered for concentricity and hardness to insure perfect seating every time
Non positional mounting ā No adapter valve required
Requires only a 2ā clearance area for installation and operation
Hex key wrench included ā No additional tools required
Corrosion resistant plated
Applications: Install on the high side as a permanent valve on the job Install on round suction lines or uneven tubing
We advise any parts being fitted are done so by a suitably qualified engineer
Please note, the image in the advert is just for illustration and item may vary
